Description

About the Charlie TARAC®

_____________________________

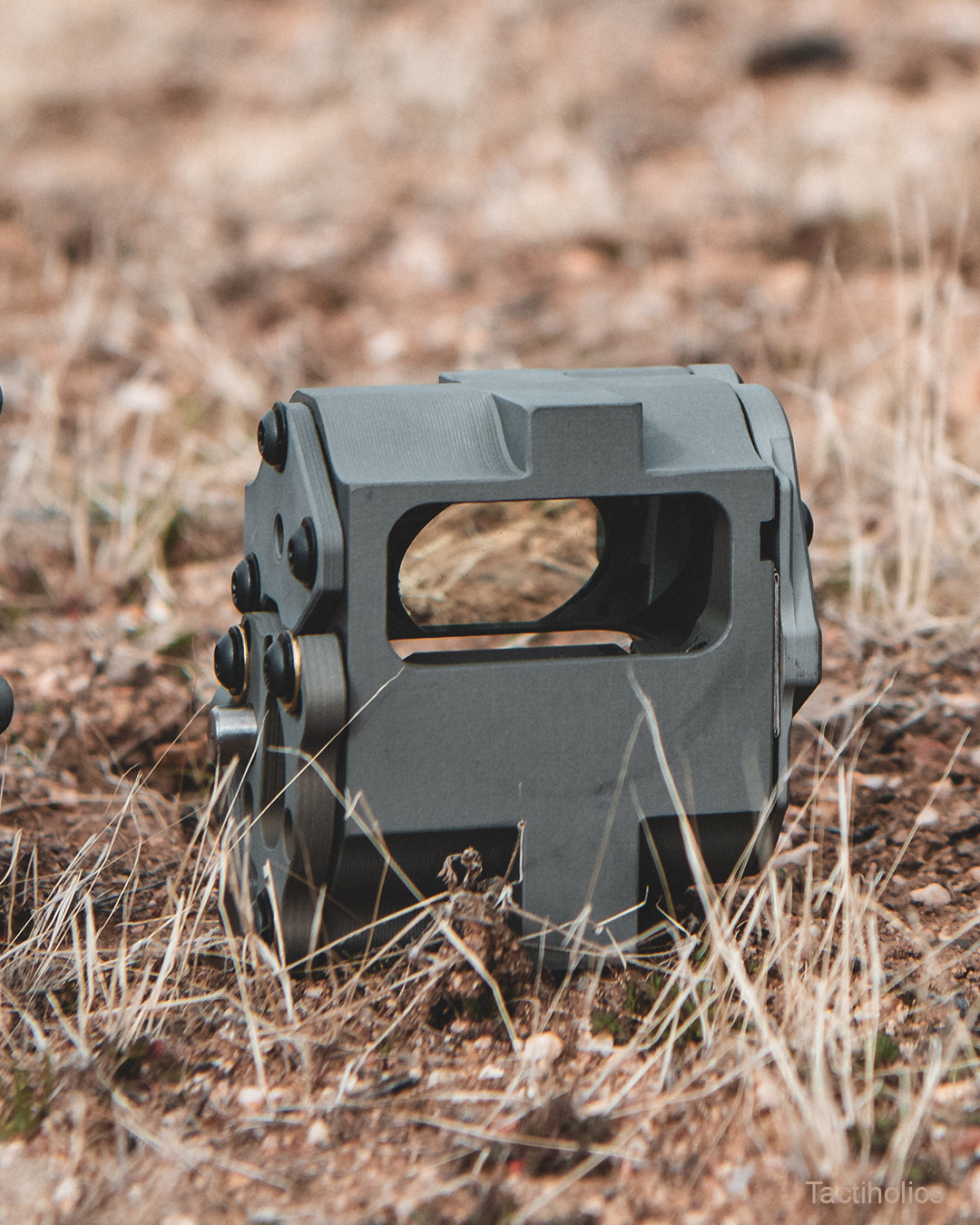

Overview

The Charlie TARAC is a periscope that optically adds elevation to any scope to exceed its native travel.  Three models are available:  Macro, MK8, and the XD23.

_____________________________

Advantages

• Adjustable¹.
• Adds 0–250² MRAD (0–850 MOA) to any riflescope with a single optic.
• Increase the scope centerline³ to add more elevation and reduce optical interference from a hot barrel/suppressor.
• Superior image quality eliminates chromatic aberration⁴ and steers the image to objective center (ideal for low-light).
• Disrupts the scope’s outline to make spotting more difficult and flat faces are ideal for camouflage tape.
• Interchangeable mounts.

¹ Macro Charlies require mechanical adjustment.  MK8 and XD22 Charlies use a precision handle to dial 5—30 MRAD (20—100 MOA) increments.
² Varies by model.  Offsets exceeding 90 MRAD (300 MOA) require a Delta TARAC to offset the scope’s line of sight.
³ Macro and MK8/XD23 add 1.3″ and 1.8″, respectively.
⁴ Color separation from prisms refracting light.

_____________________________

Disadvantages

• Weight.

*Procure the Bravo TARAC® to optically add elevation at minimal weight.

_____________________________

Attachment

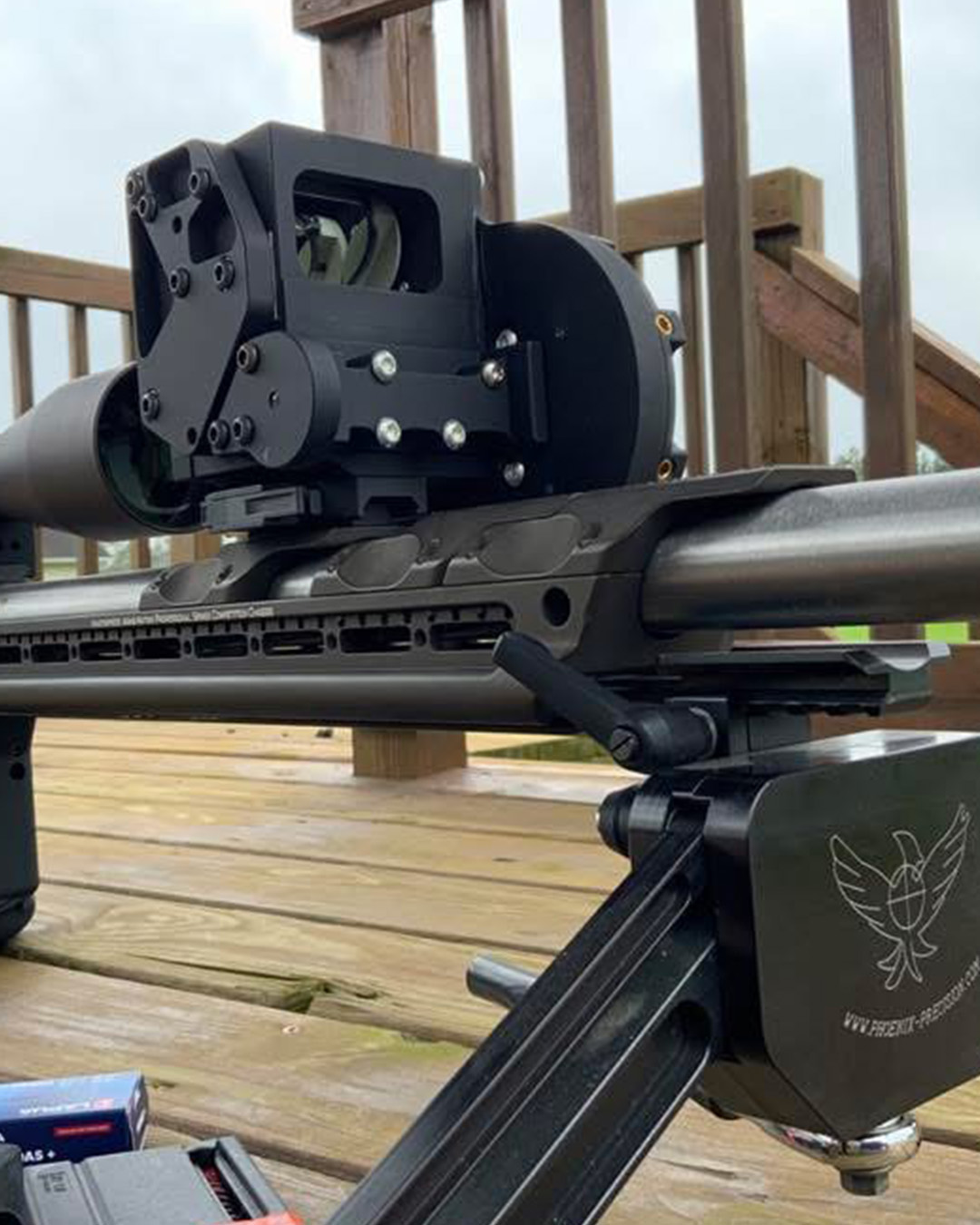

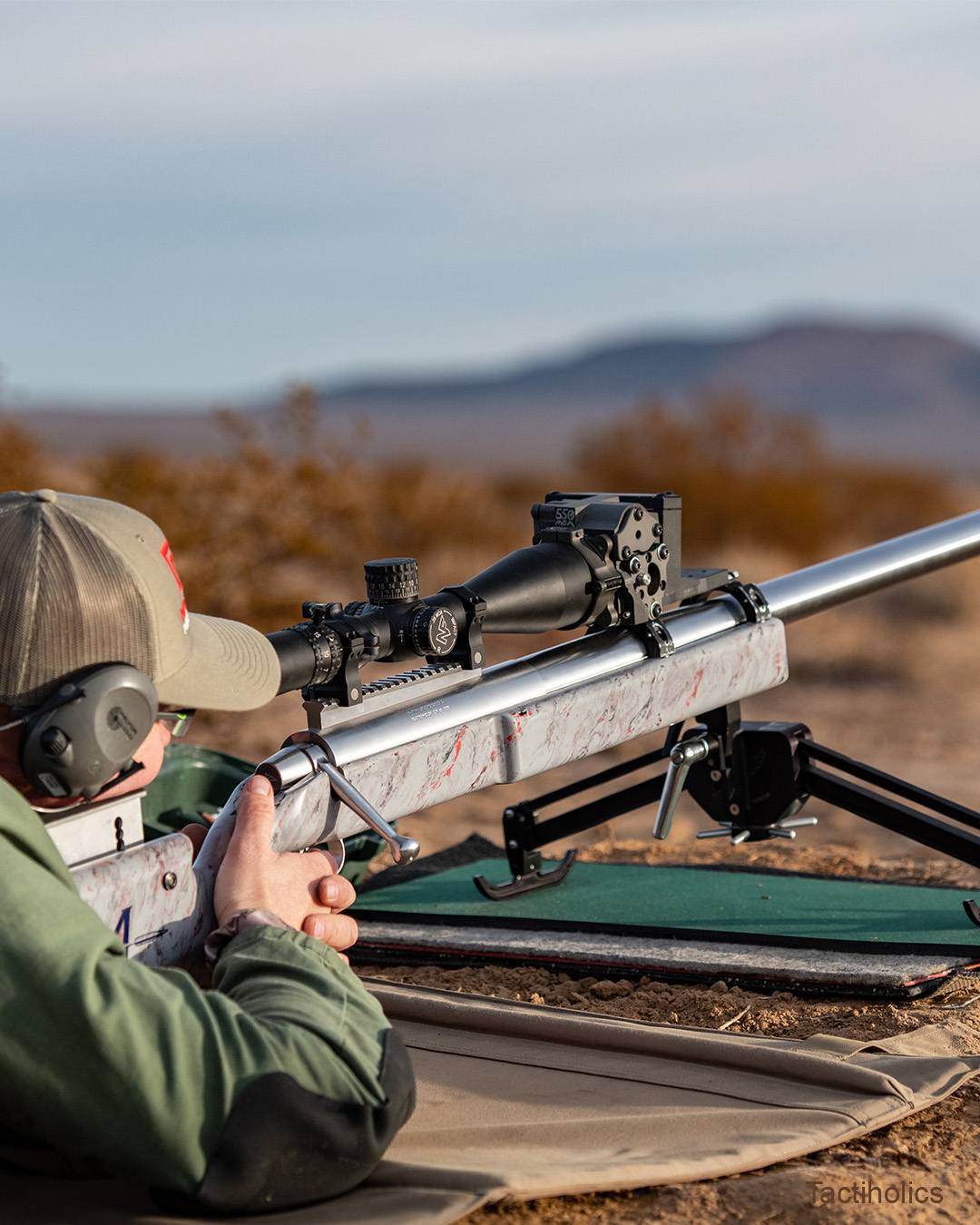

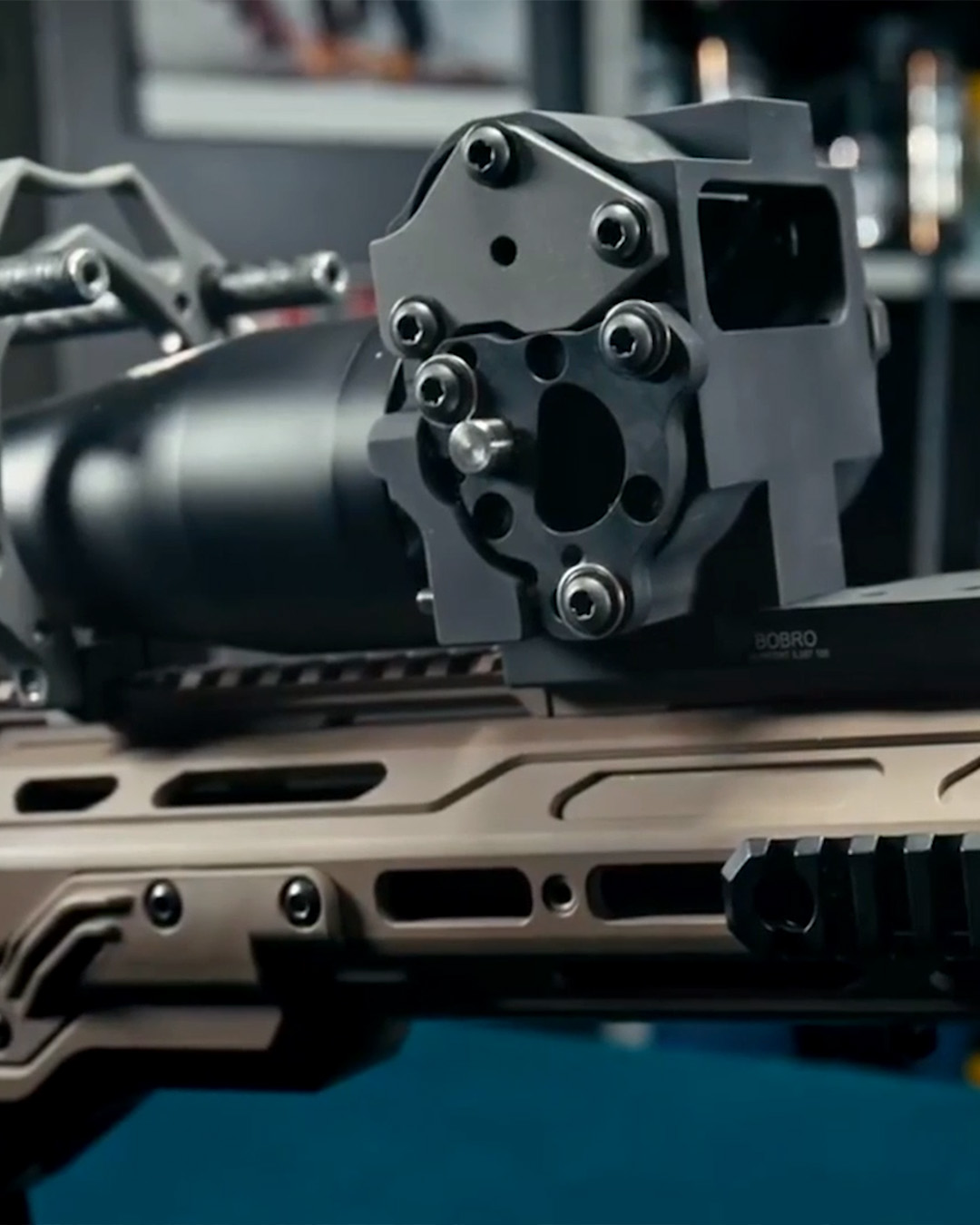

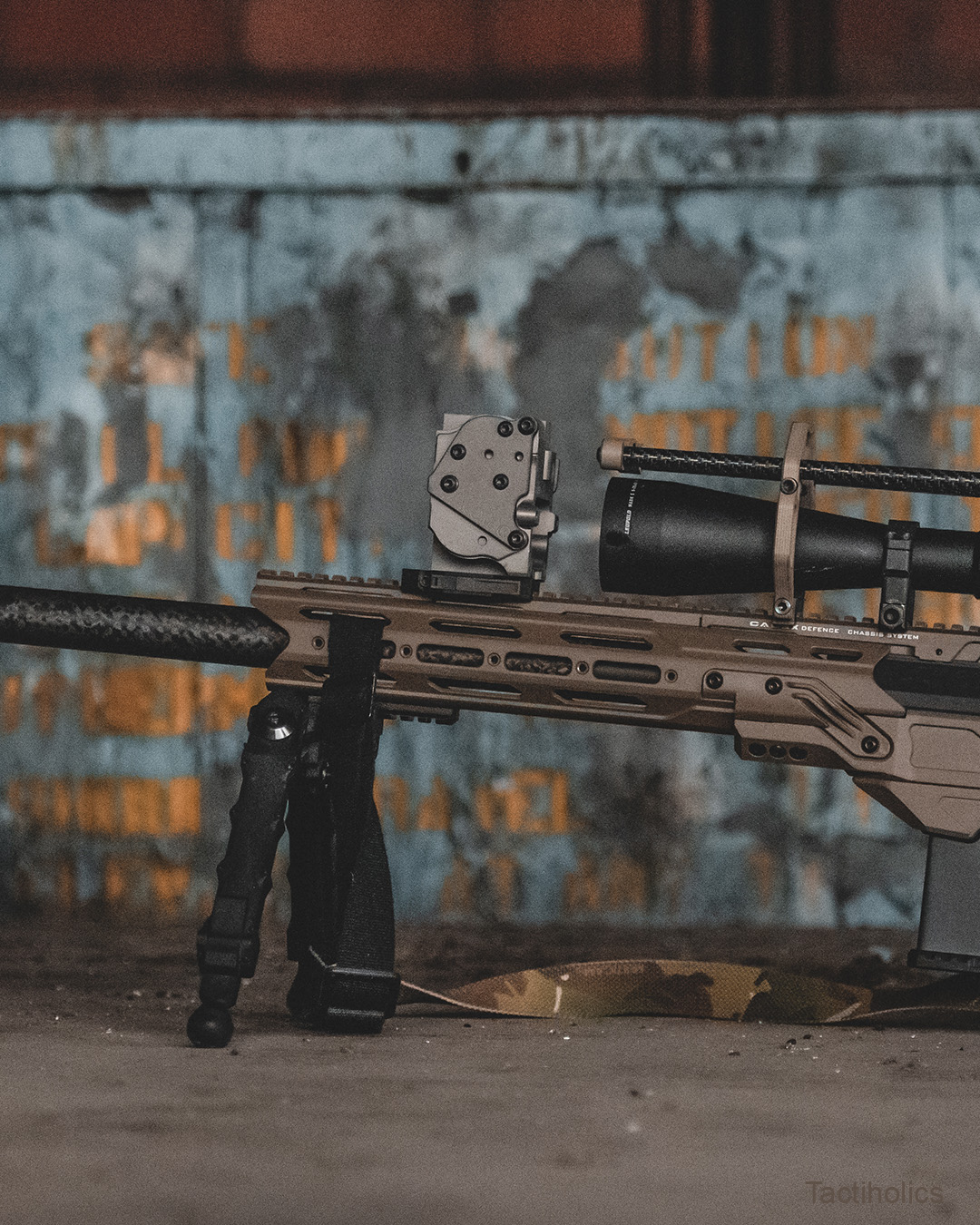

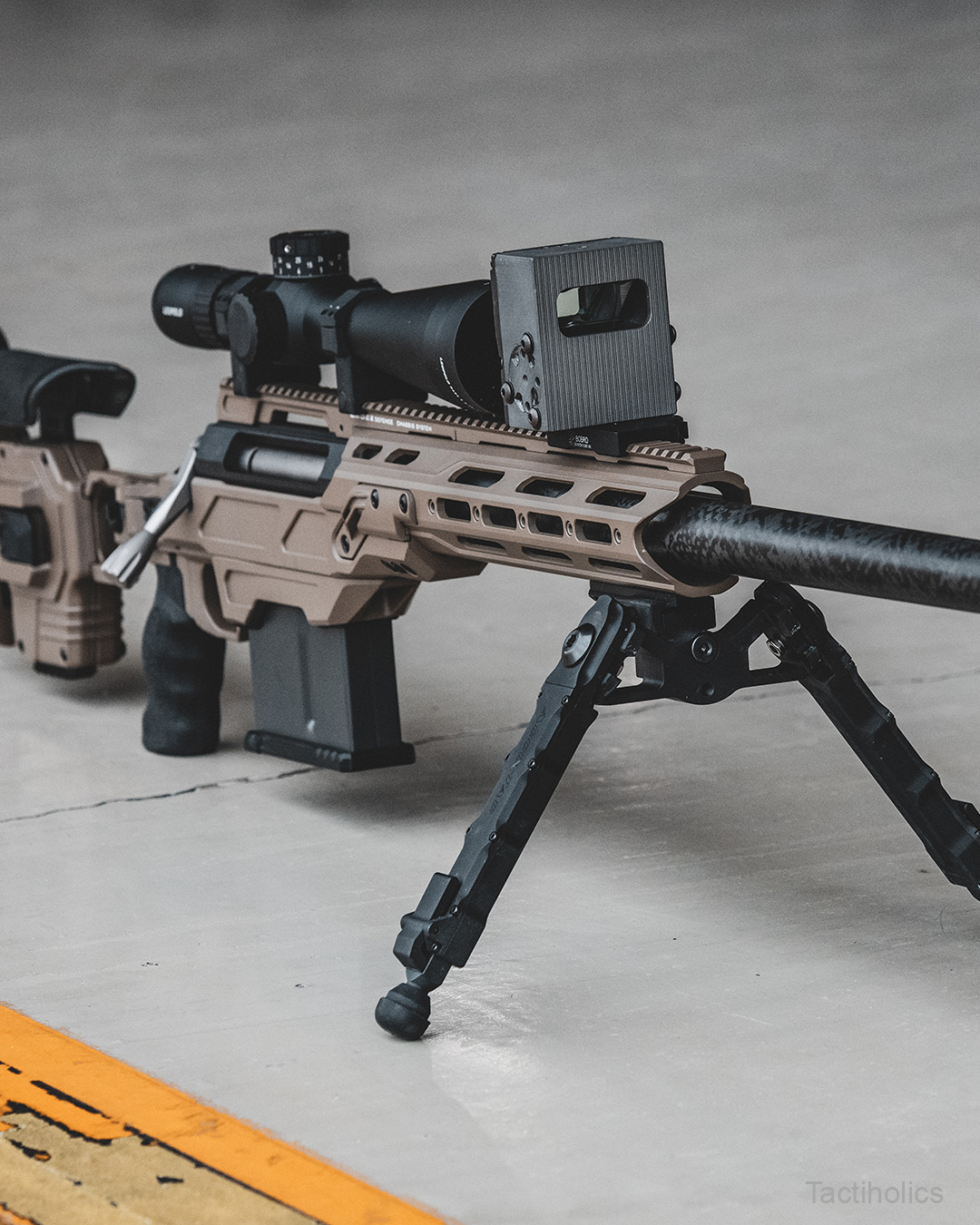

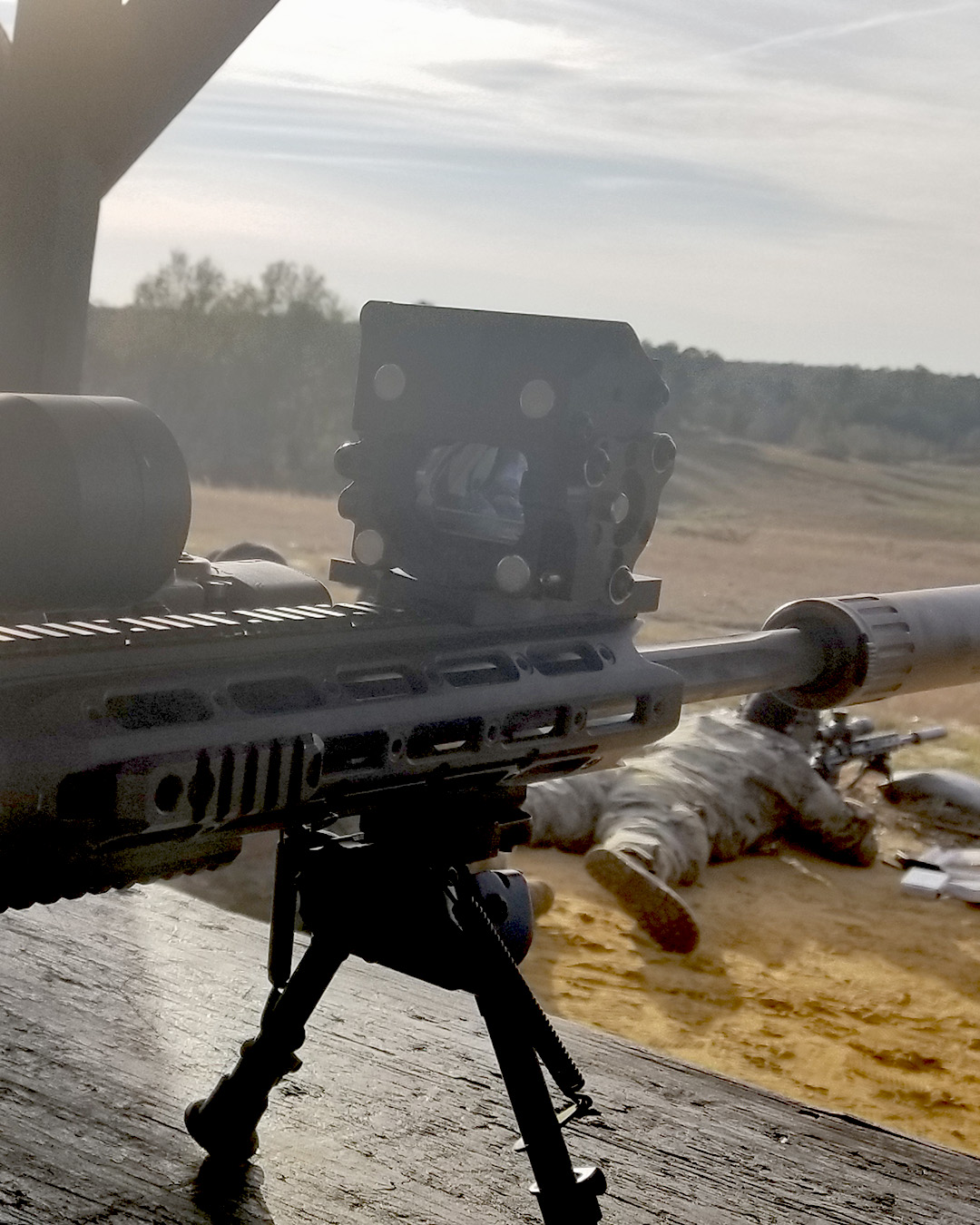

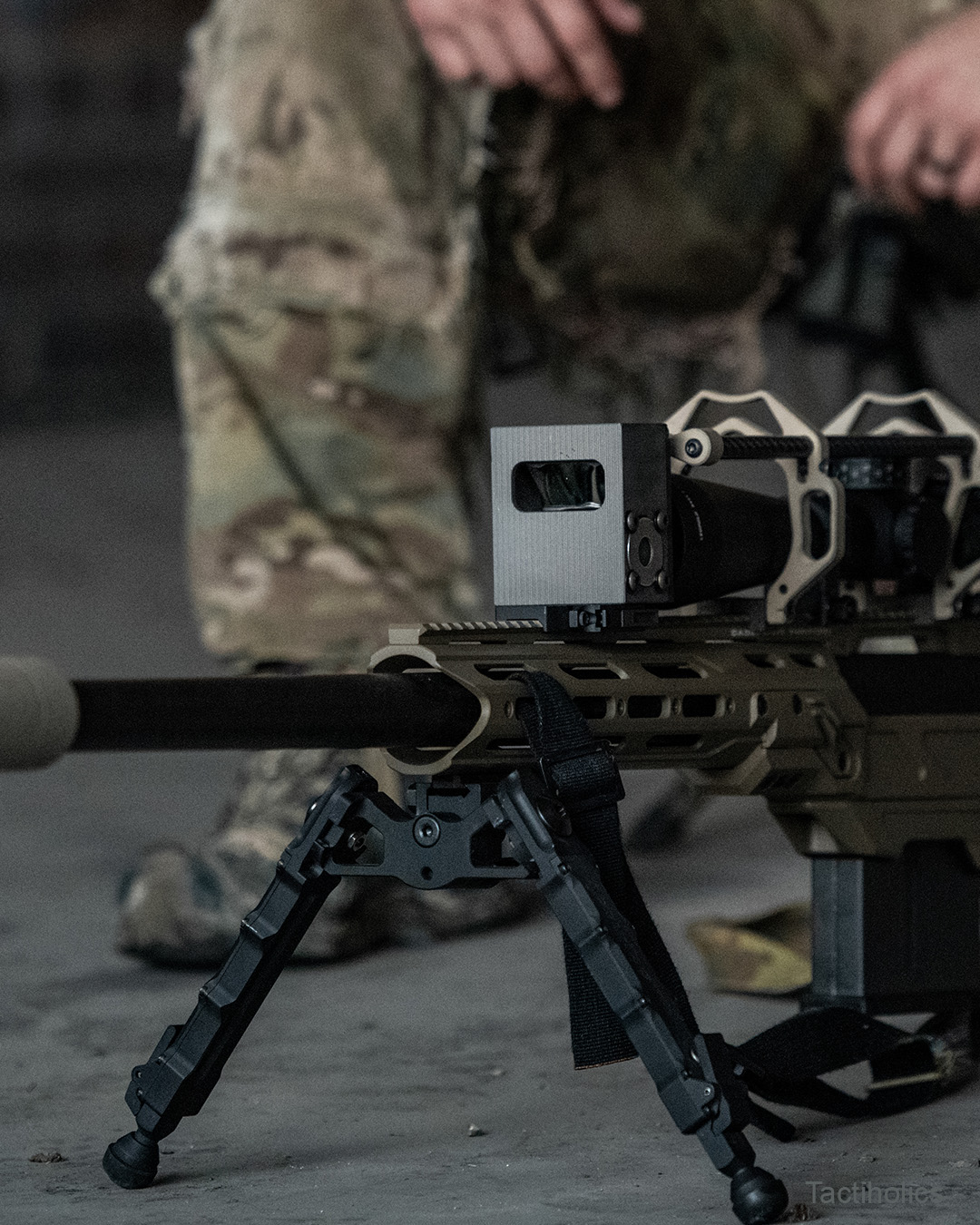

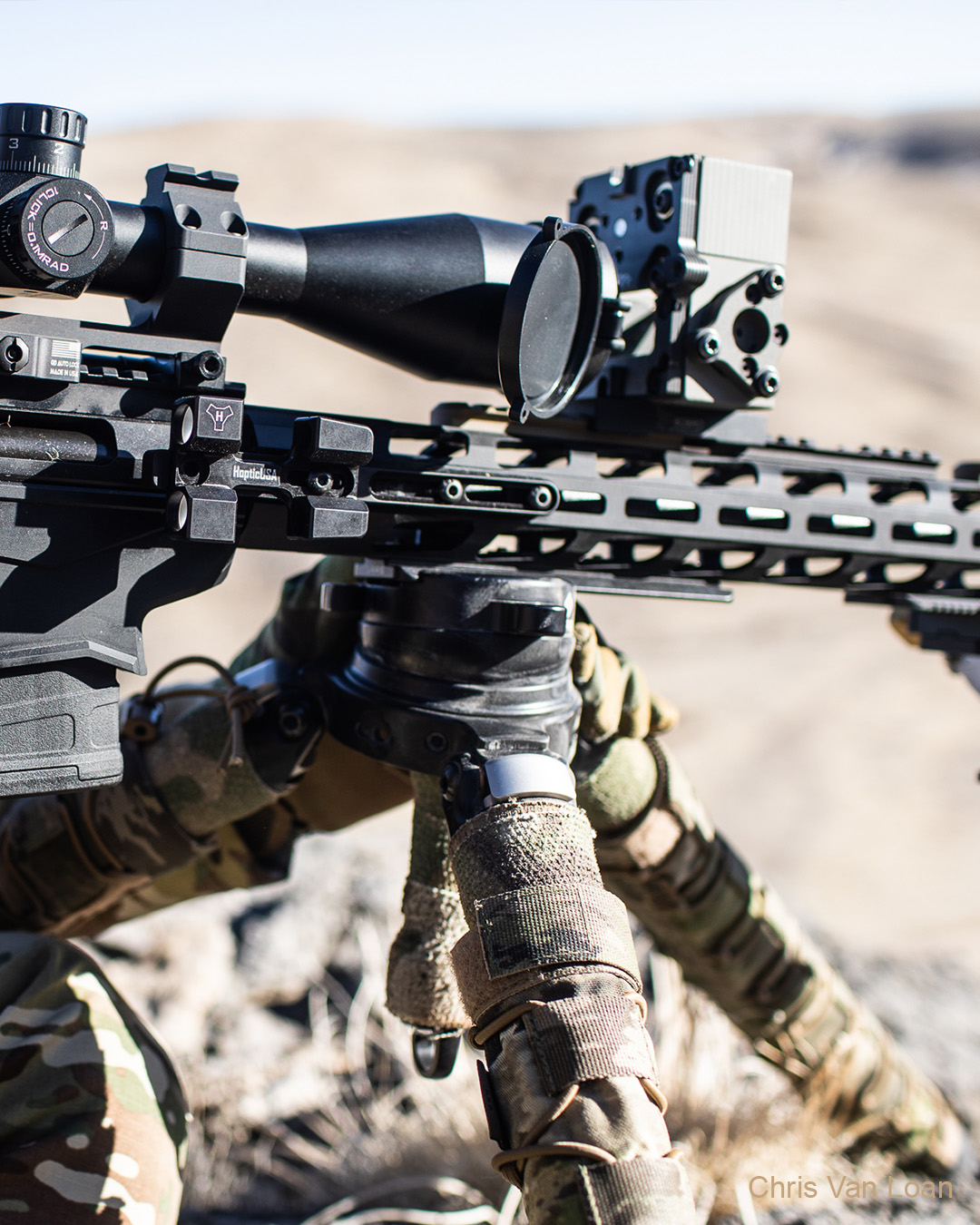

+ Rail – Toolless Bobro quick-detach.  Optimized to mount directly in front of scopes on 1.5″ scope rings.  Works with scopes on canted rails up to 35 MRAD (120-MOA).

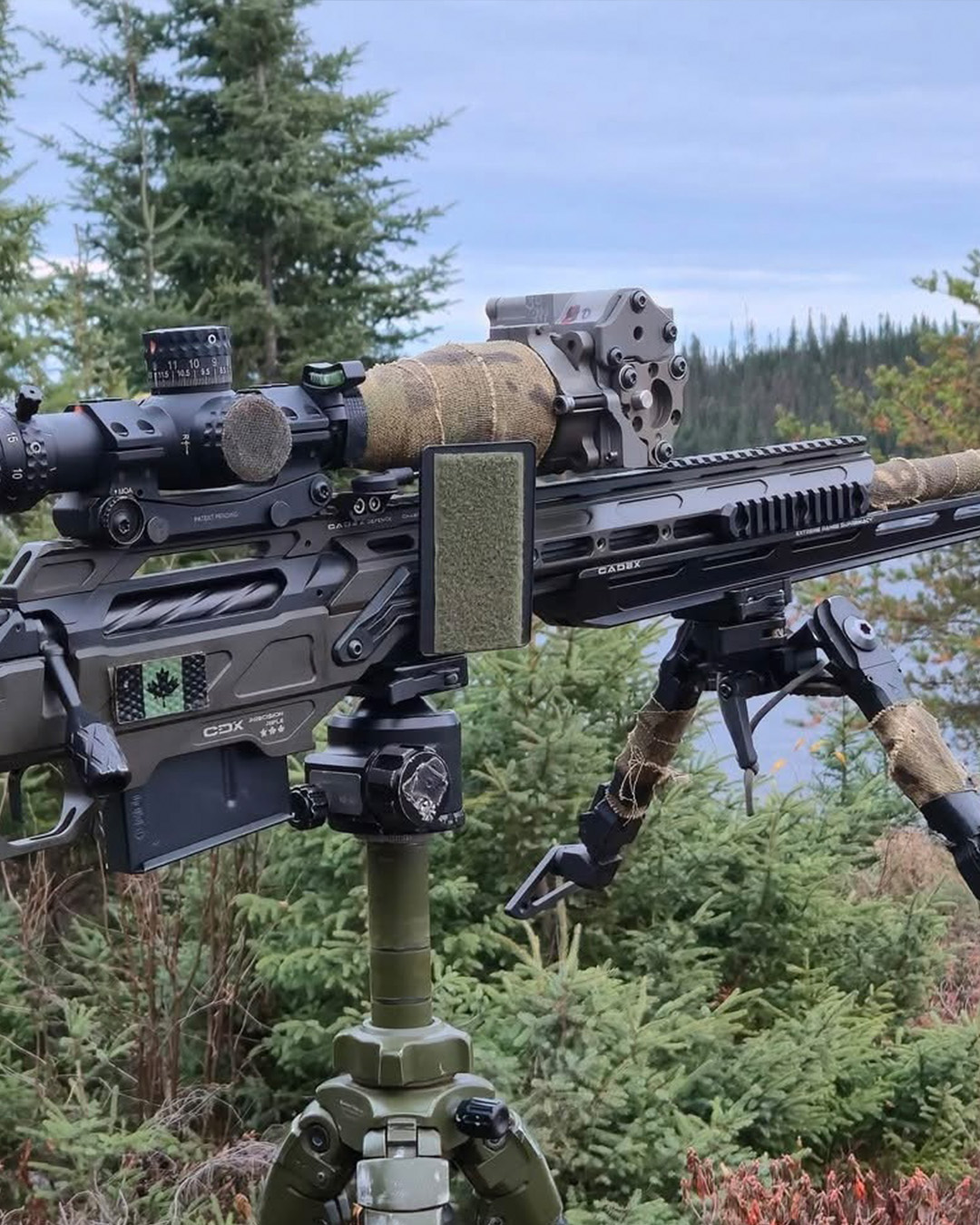

+ Scope – Attaches directly to the scope’s objective (not a sunshade).  Scope mounts are scope specific, requires 0.25″ (6 mm) clearance, and a digital level or Plumb Bob for initial setup.

_____________________________

Calibration

Options:
1. Match total, usable elevation.
2. Select a multiple of ‘5’ or ’10’ for simple, mental arithmetic.

*Most common offsets are 30 MRAD and 100 MOA.

_____________________________

Specs

Macro
Highlights
• Mechanically adjustable.
• Max offset 250 MRAD (850 MOA)
• Rail or scope mount.
• Requires a tall-target or a digital level to reset.
Dimensions (H x W x D):
3.5″ x 3.7″ x 2.5″ (89 x 93 x 62 mm)
Weight:
Rail mount 24.9 oz (706g)
Scope mount 26.3 oz (746g)
NSN: 1240-01-697-6962

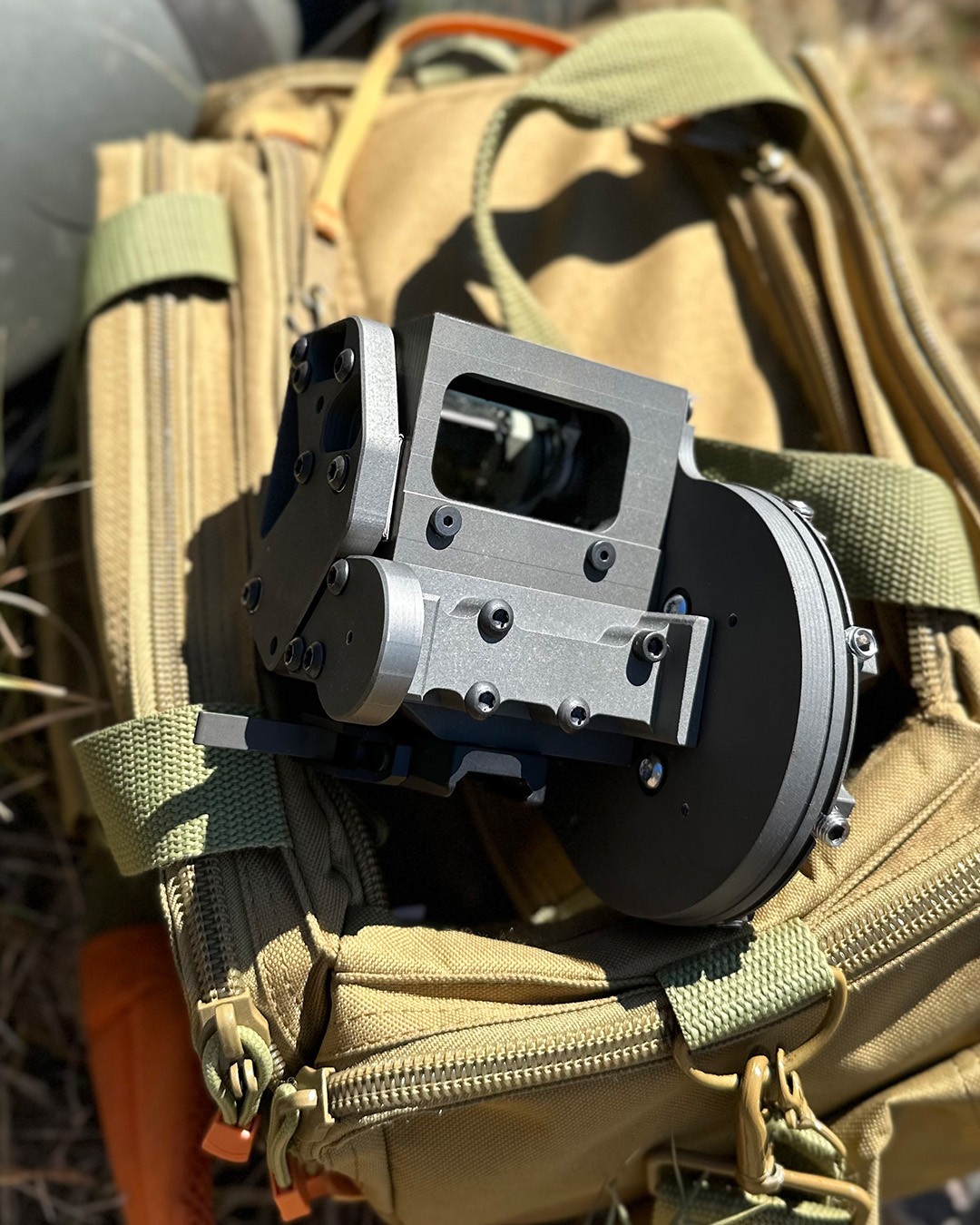

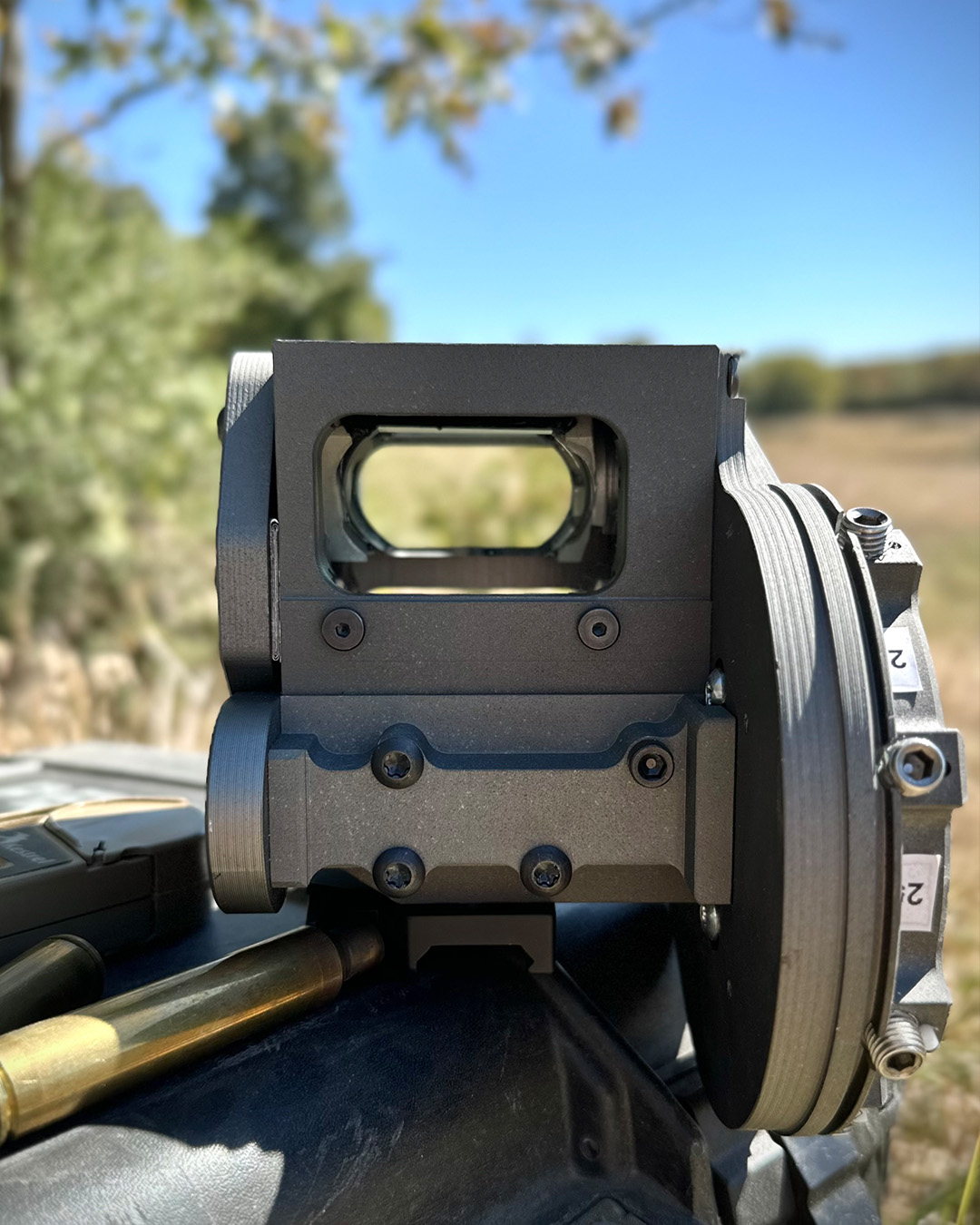

MK8
Highlights

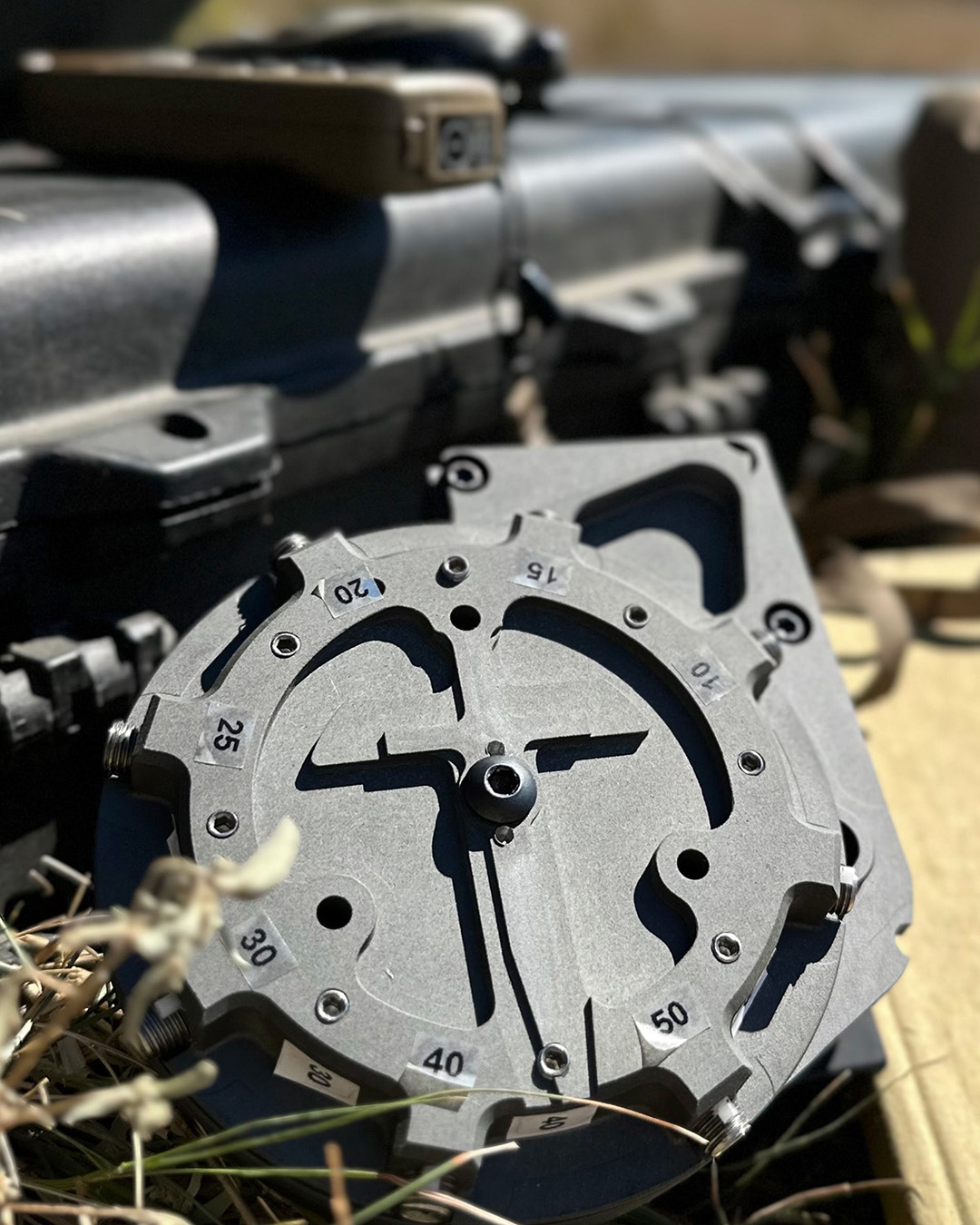

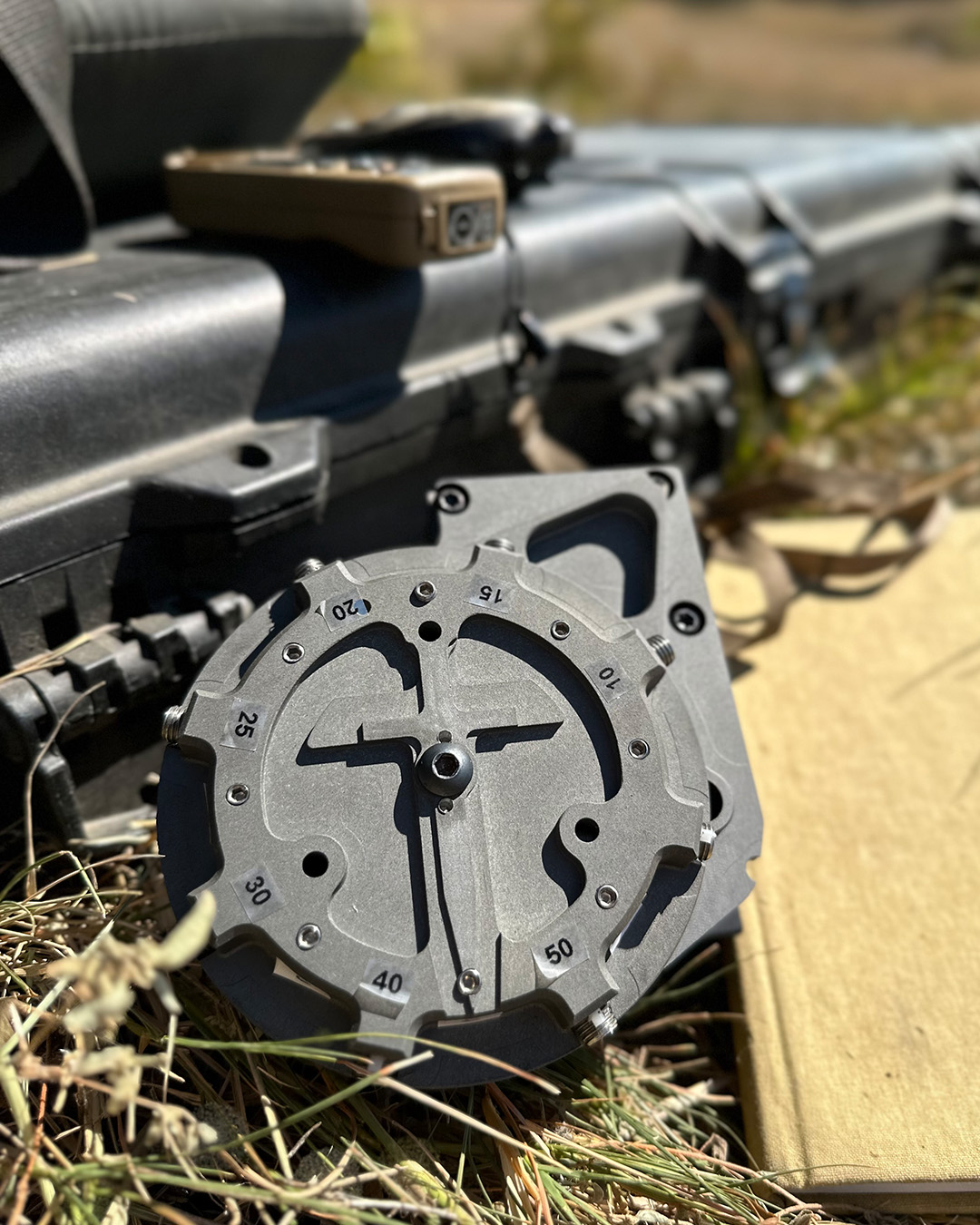

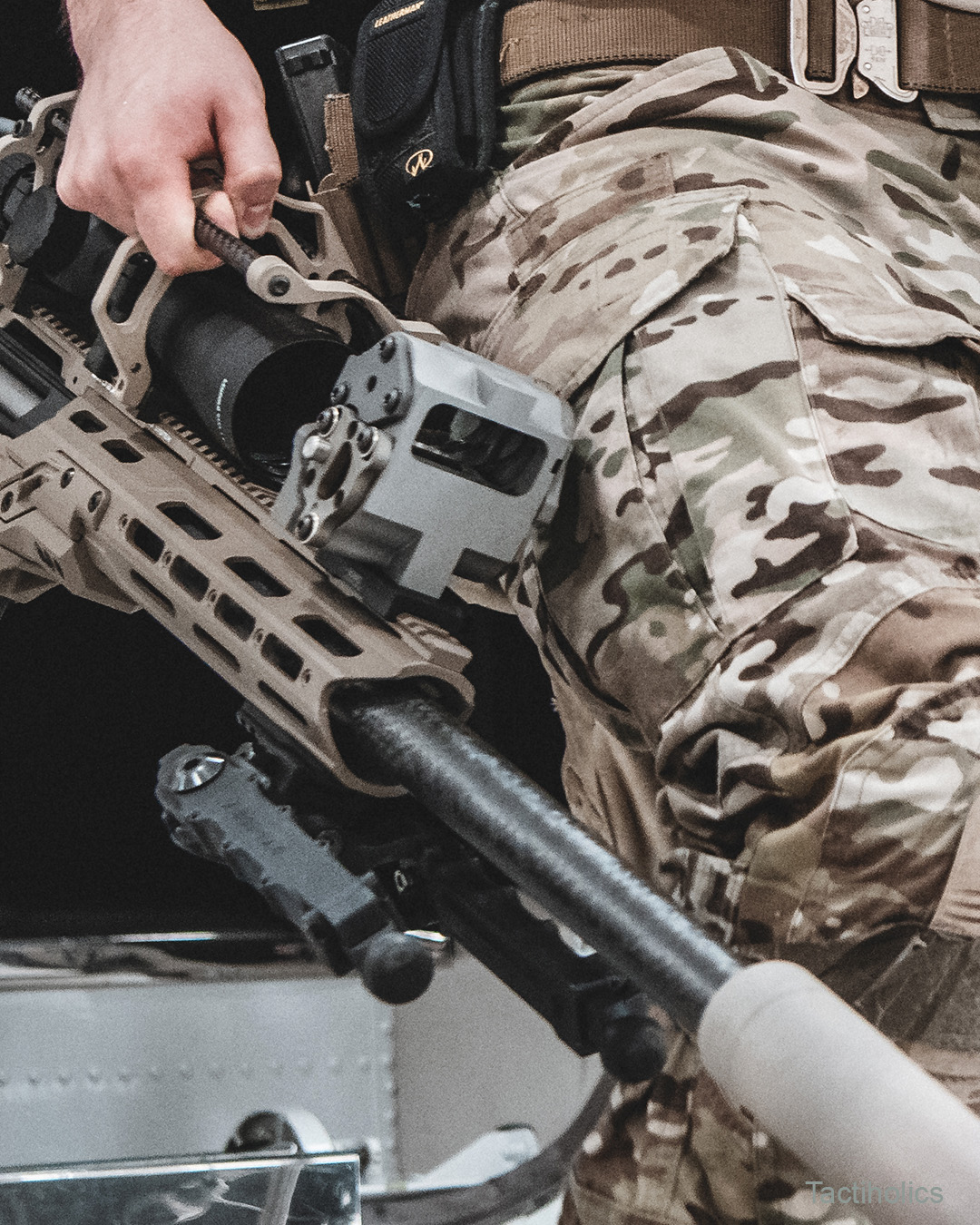

• Dial offsets on-the-fly with precision handle.
• Add 5—30 MRAD (20—100 MOA) per click.
• Max offset 210 MRAD (700 MOA)
• Rail mount only.
Dimensions (H x W x D):
5.4″ x 4.7″ x 5.1″ (137 x 118 x 130 mm)
Weight:
Rail mount 56.7 oz (1607g)

XD23
Highlights
• Near identical to the MK8, this unit starts at the elevation limit of the MK8 for 210—400 MRAD (700—1400 MOA) of adjustment.

Mount:
ADM quick-detach (MIL-STD-1913 rail) or scope mount
Night Vision Compatibility:
Yes (behind Charlie)
Thermal Compatibility:
Yes (behind Charlie)
Electronics:
None
Country of Origin:
100% Made in the USA¹
Manufacturing Method:
Billet
Warranty:
5 year (Non-transferable)

¹ MK8 and XD23 Charlie TARAC ABEC 7 ball bearing assembly produced in Germany.

_____________________________

Performance

Salt Water Resistance:
50ft (15m) depth
Operating Temperate:
-40°F to 140°F (-40°C to 60°C)
Glass:
Precision annealed 1/8th wave mirrors
Coating:
+98% reflective MIL SPEC
Fog Resistance:
Yes
Anti-Reflective Coating:
Yes

_____________________________

World Records

Military
• Dallas Alexander, JTF2 –  3,872 yds (2.2 mi or 3.5 km) May 2017

Civilian
• Charlie Melton, Charlie Mike Precision – 5,000 yds (2.8 mi or 4.6 km) Sep 2017
• Paul Phillips, Global Precision Group – 6,012 yds (3.4 mi or 5.5 km) Jan 2019
• James DeVoglaer – 7,070 yds (4.0 mi or 6.5 km) Sep 2019
• Bill Poor – 7,141 yds (4.1 mi or 6.5 km) Aug 2020
• Nomad Rifleman Shooting Experience – 7,747 yds (4.4 mi or 7.1 km) Sep 2022

_____________________________

Included in the Box

+ Optic
+ ADM QD or scope mount (per selection)
+ Desiccant bag

_____________________________

Operator Manual

PDF Download
