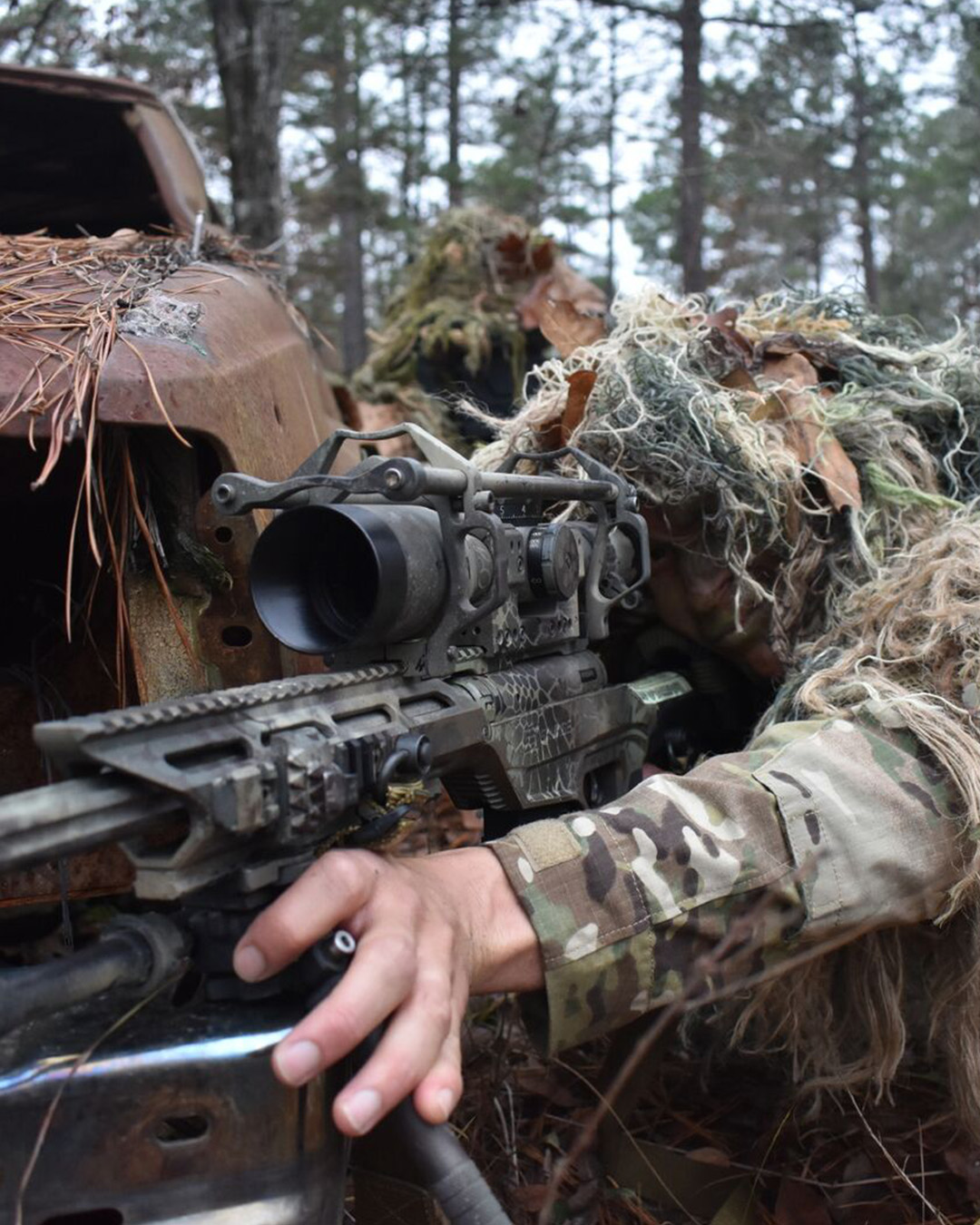

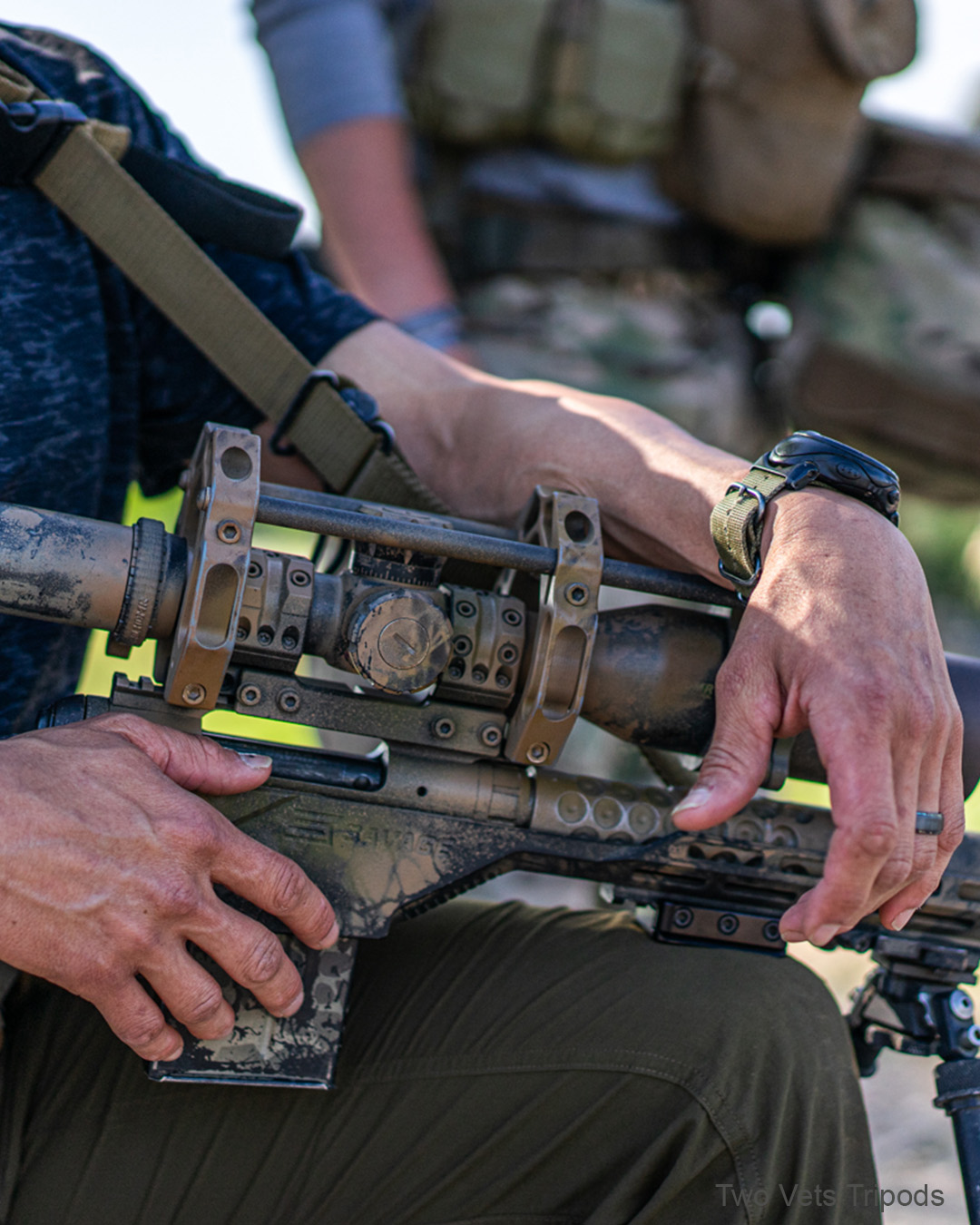

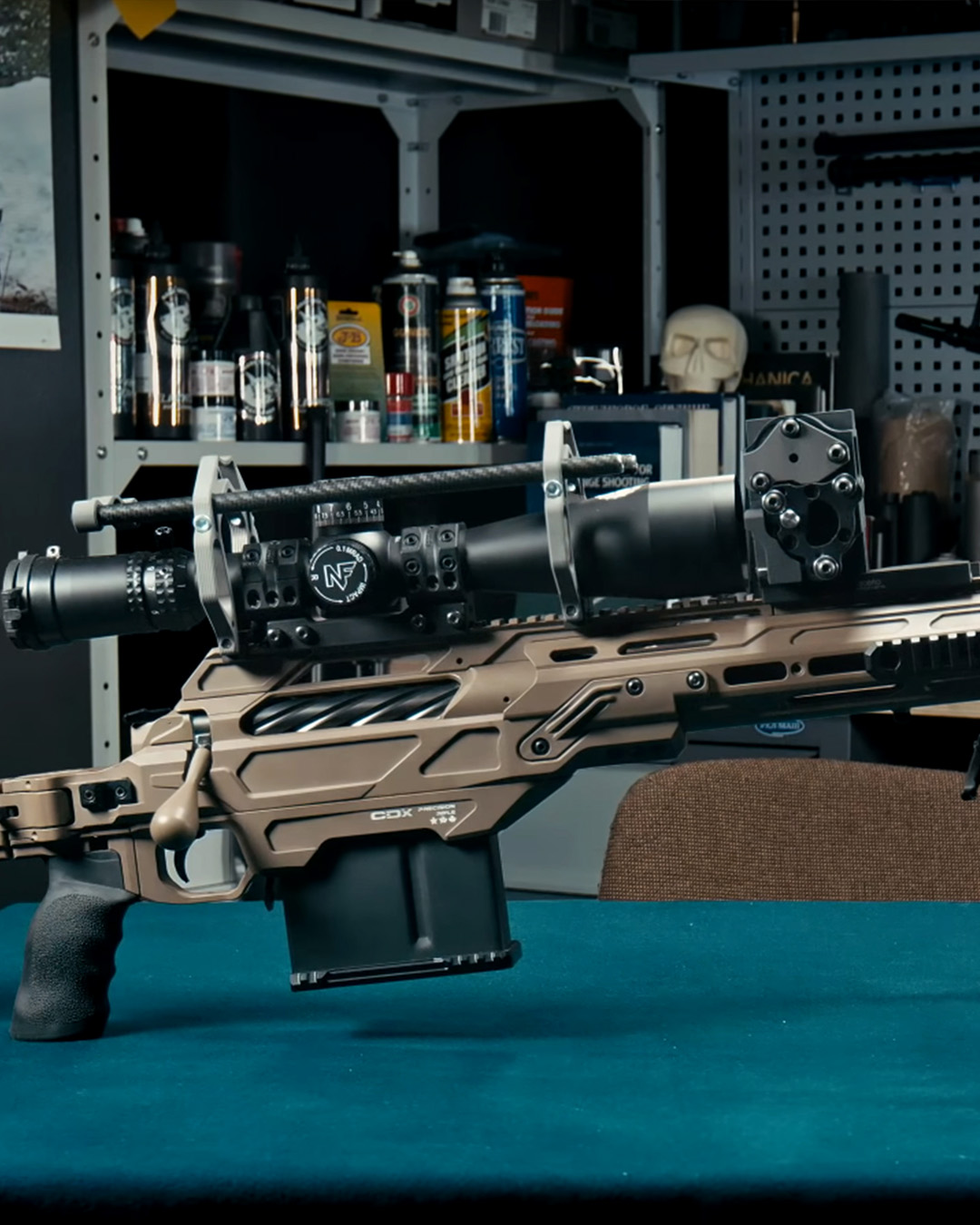

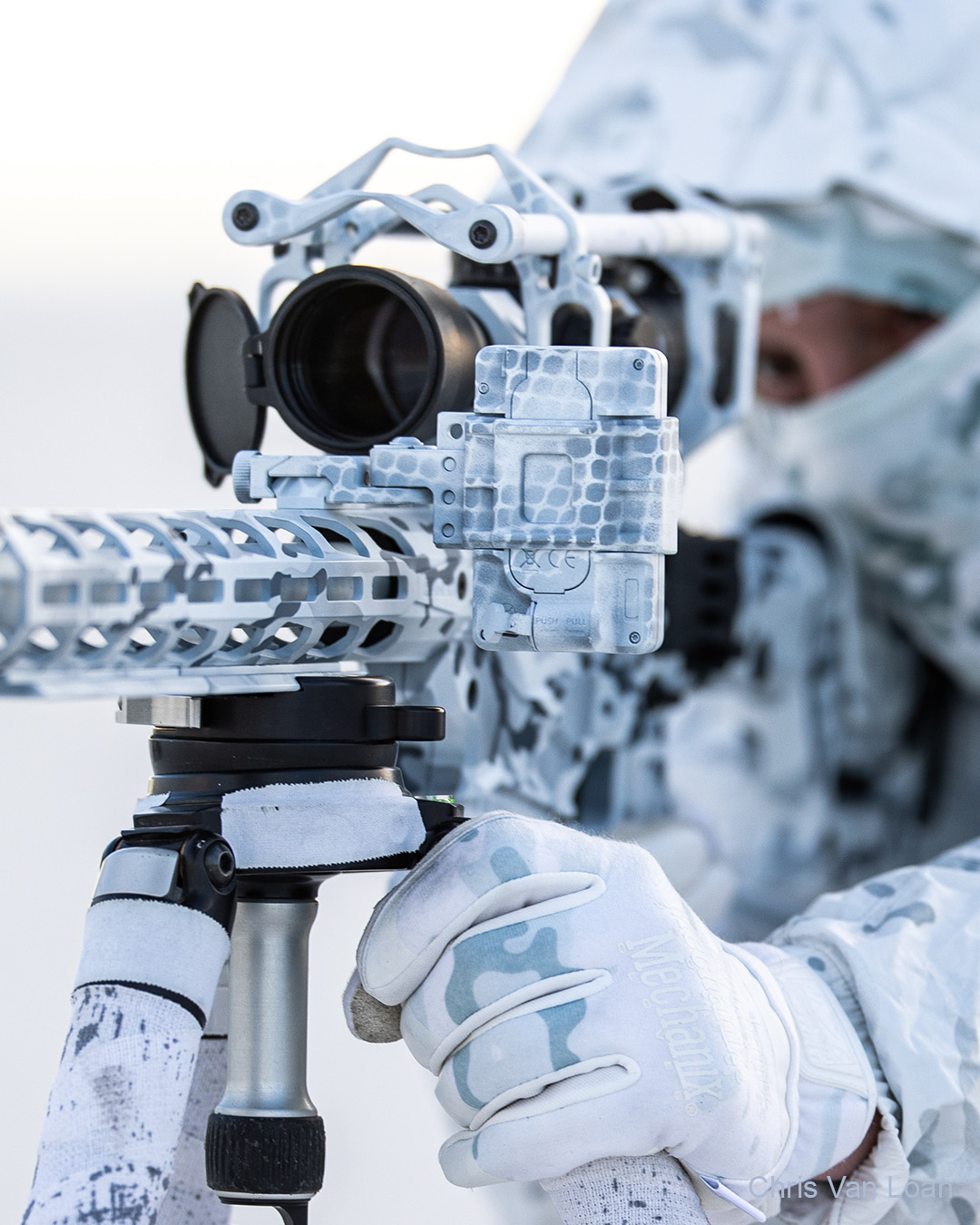

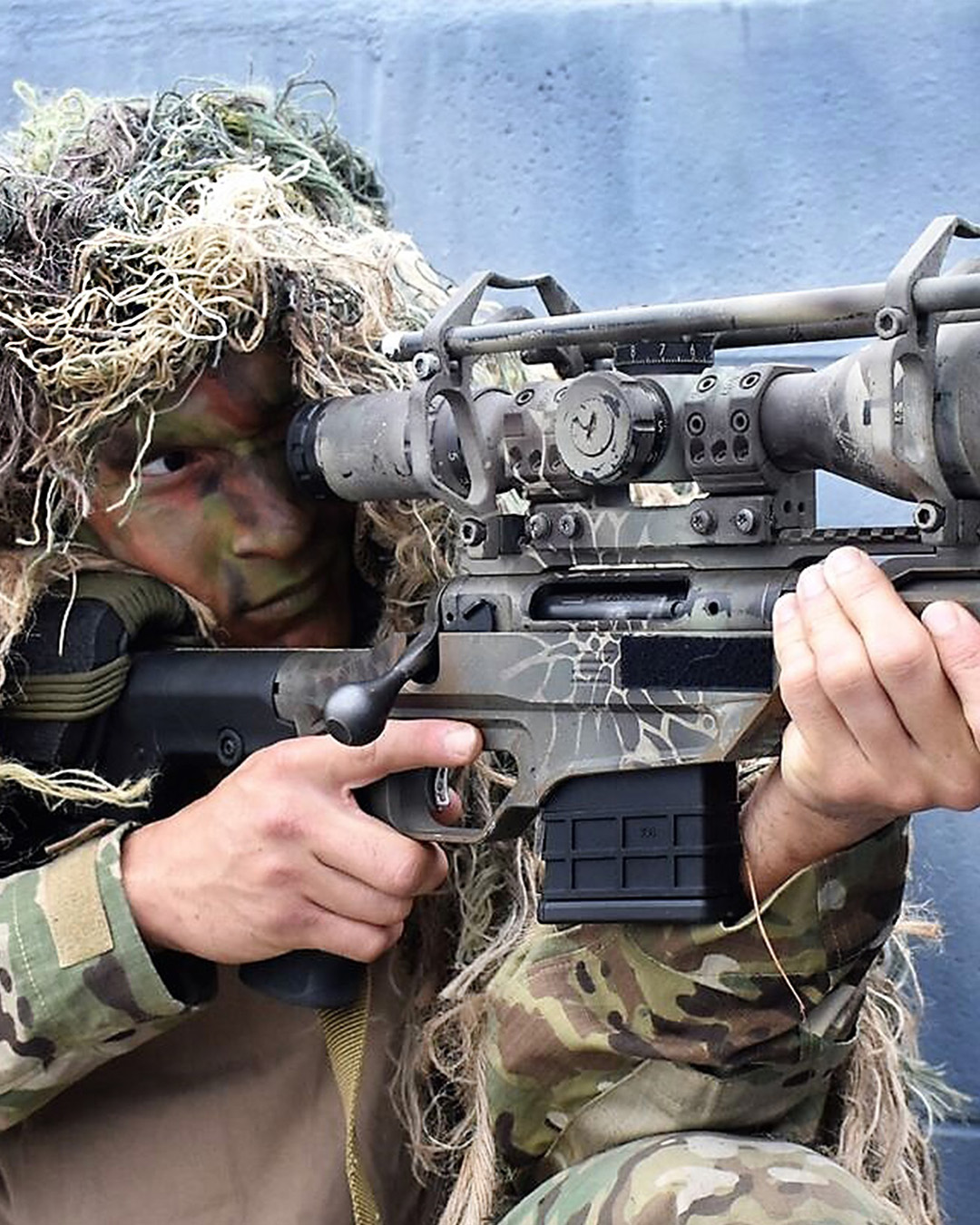

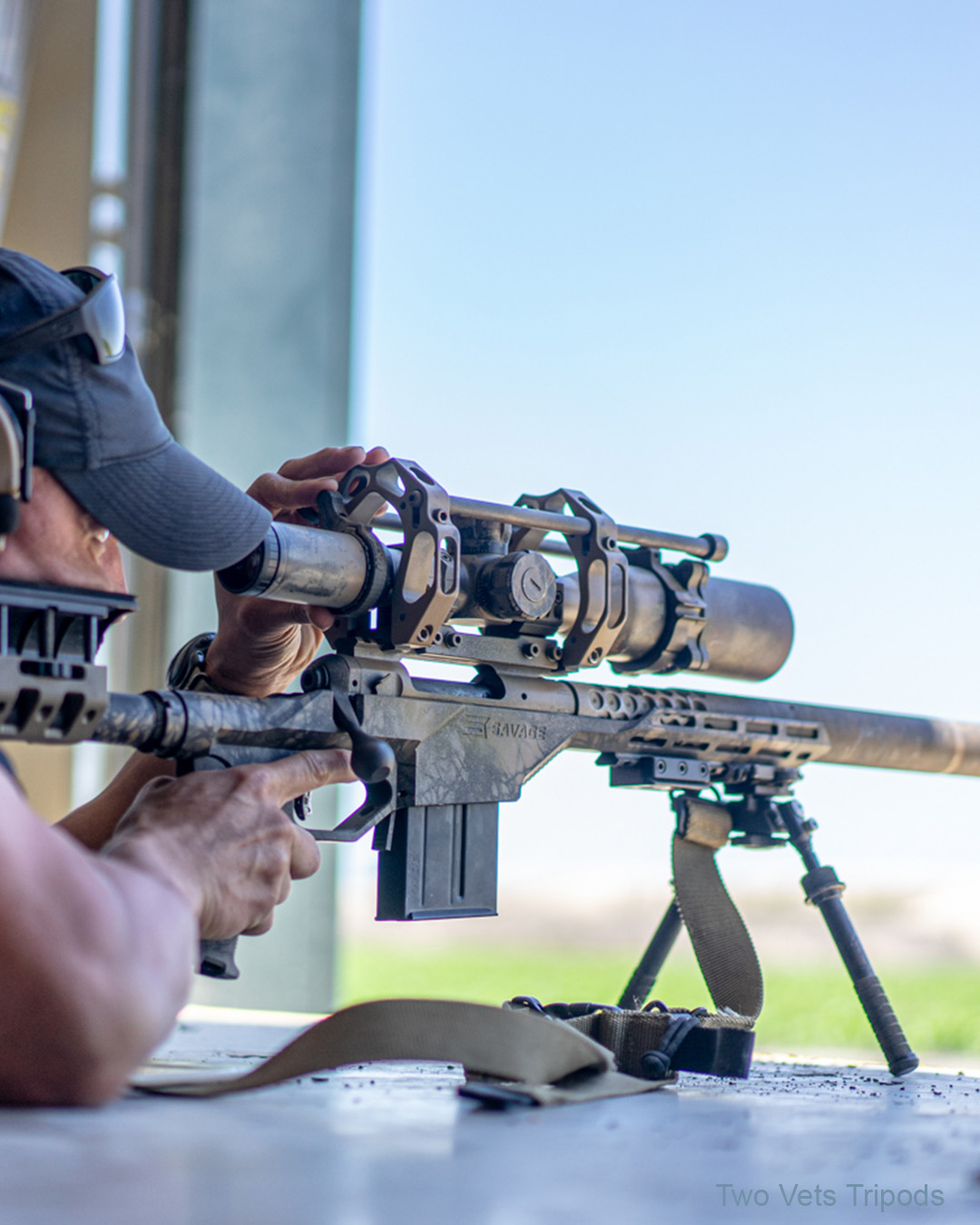

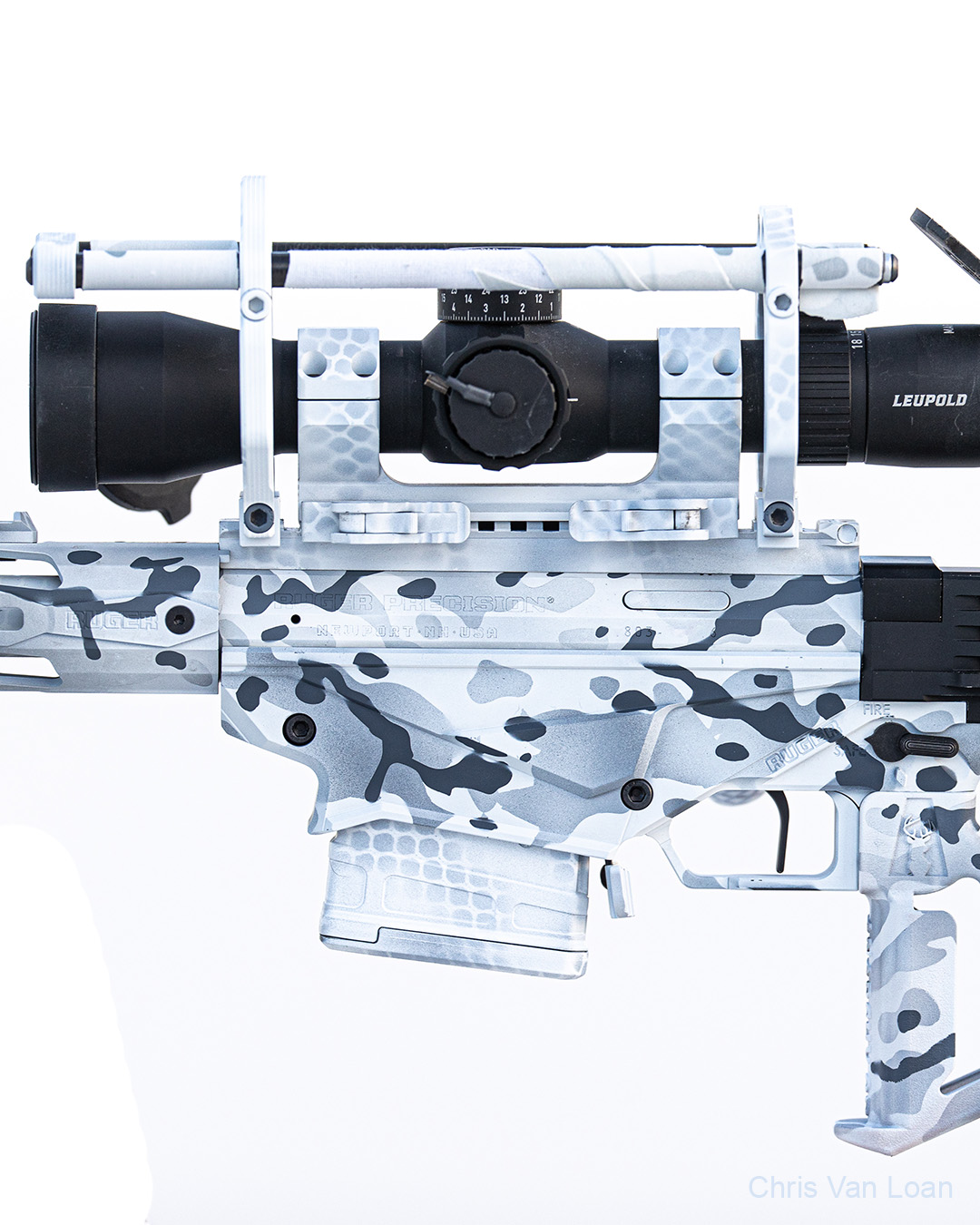

Description

About Armor Optic

_____________________________

Overview

Safeguard optics and your Point of Impact.

_____________________________

Advantages

•  Carry-handle
• Camouflage attachment
•  Lanyard attachment for HELO transport / security
• Light-weight

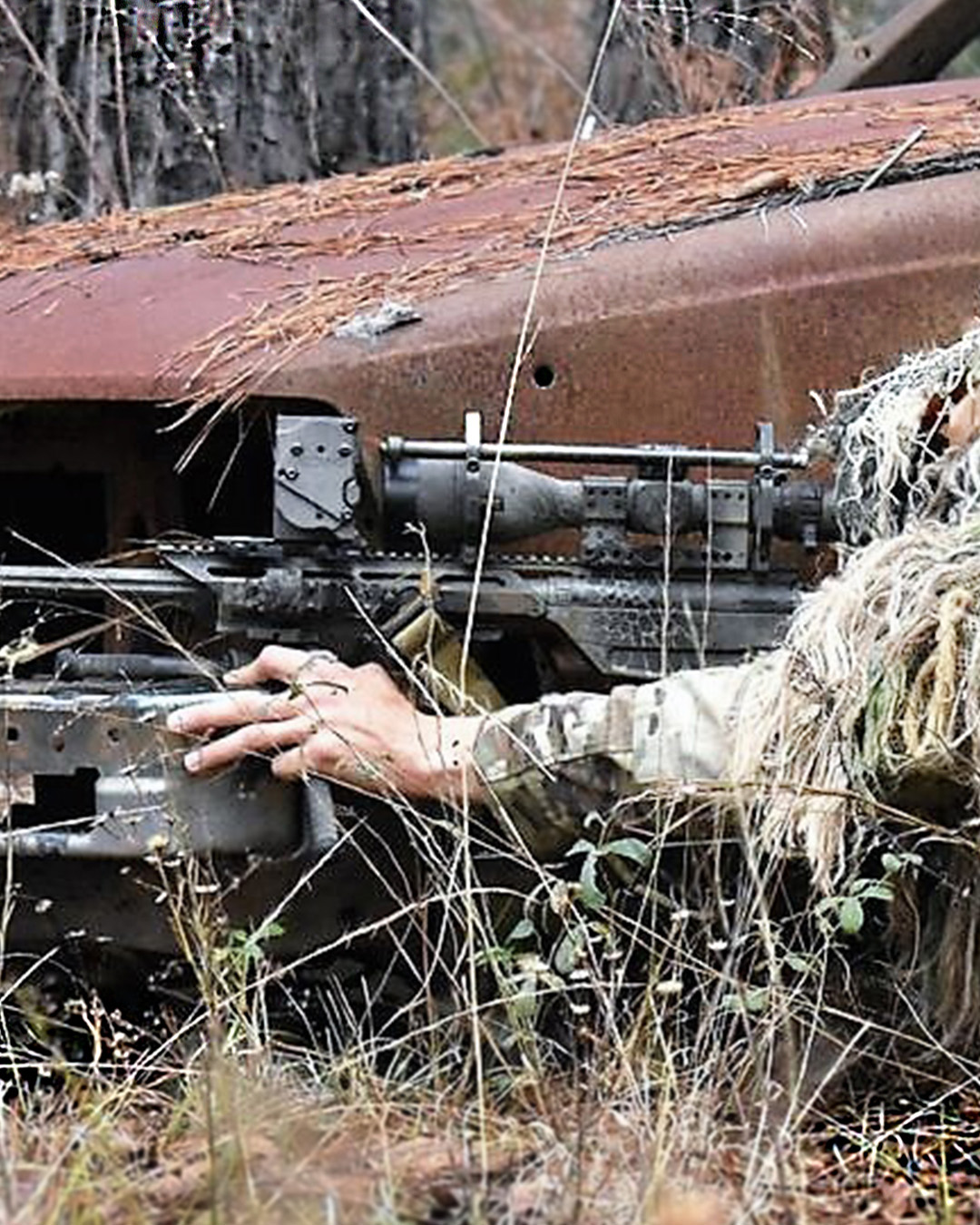

• Brace against a car door, building, window, or under a vehicle
*Ideal for schoolhouses, fast-roping, SNOT, SPIES, airborne operations, mass tactical exits, and military free fall.

_____________________________

Disadvantages

• Weight 6—12 oz (170—340g)
*Varies per selections.

_____________________________

Attachment

1) Insert carbon fiber rods into braces.
2) Apply ARP thread lubricant to all bolts including under the bolt head.
3) Position clamps onto picatinny rail.
4) Align braces onto clamps.
5) Insert bolts and tighten to 50 in/lbs.

_____________________________

Specs

Micro
Dimensions:
0.38″ x 4.00″ x 3.76″ (10 x 112 x 96 mm)
Weight:
*Varies by rod length and material.

Macro
Dimensions:
0.38″ x 4.00″ x 4.11″ (10 x 112 x 104 mm)
Weight:
*Varies by rod length and material.

Mount:
Bolt-on (MIL-STD-1913 rail)
Country of Origin:
Made in the USA
Warranty:
5 year (Non-transferable)

_____________________________

Performance

Salt Water Resistance:
32ft (10m) depth
Operating Temperate:
-40°F to 140°F (-40°C to 60°C)

_____________________________

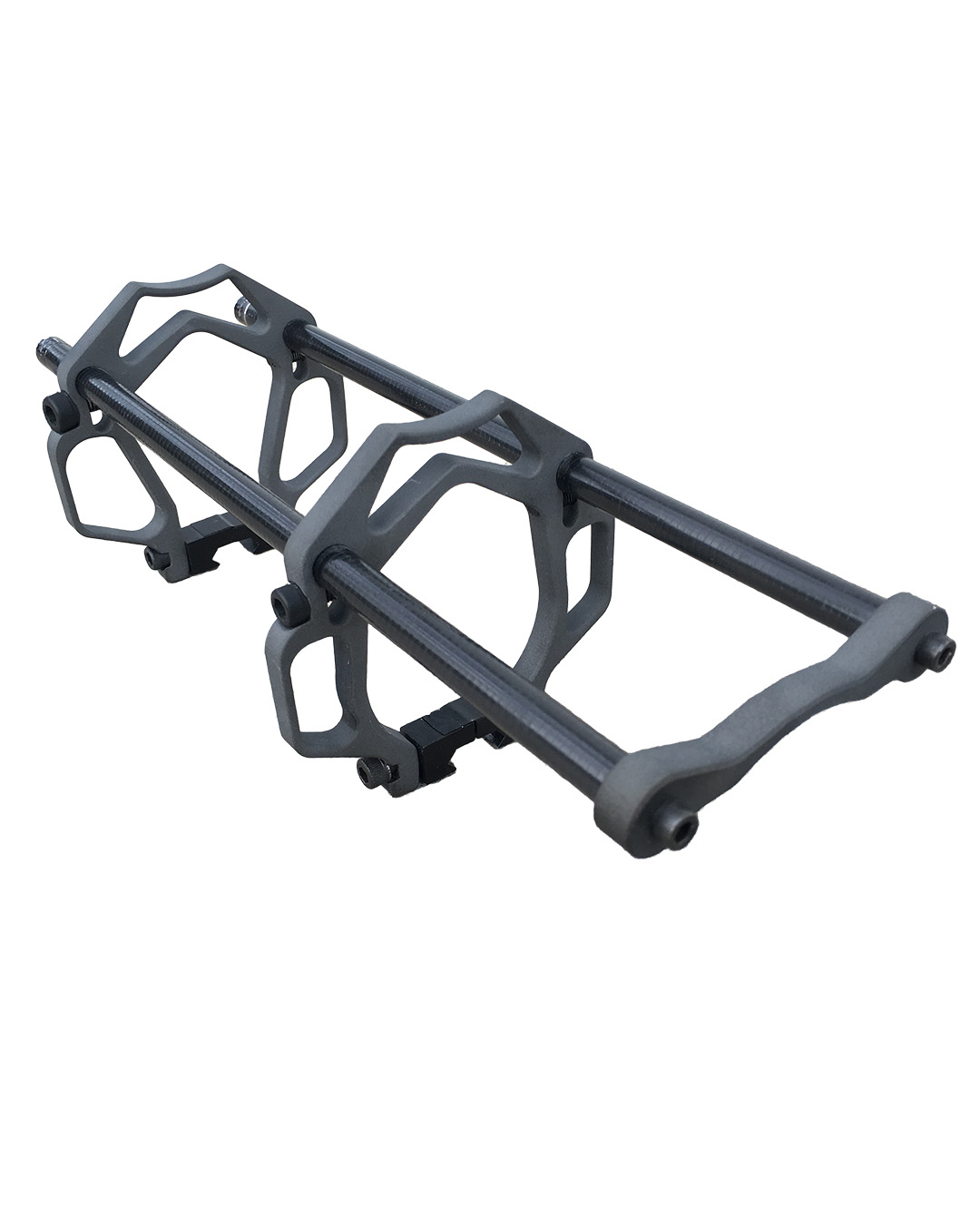

Included in the Box

+ Braces
+ (Reinforced) carbon fiber rods
+ Crossbars
+ Fasteners
+ ARP thread lubricant

_____________________________

User Guide

PDF Download (coming soon)

_____________________________

Export Export of this product is strictly controlled and enforced by the U.S. Department of Commerce, Bureau of Industry, and Security, as prescribed in the Export Administration Regulation (EAR), Title 15, Code of Federal Regulations, Parts 730-774. Submitting payment acknowledges compliance with all requirements imposed by all applicable laws, regulations and administrative policies. TACOM HQ, Inc. does not authorize any of its dealers or distributors to export this commodity without prior, written authorization, and will not provide warranty or post-sales support of unauthorized international exports. Click here to review export eligibility.

Armor Optic:
EAR99 NLR
HST Code 9013.10.4000

Cancellation/Return Policy ALL SALES ARE FINAL ONCE SHIPPED. No returns or exchanges will be accepted. If purchased item arrives damaged or defective, please email info@tacomhq.com for a RMA number within 48 hours of delivery.  Click here for details.
